Mobile Concrete & Egg Laying Block Machines
Transform Your Precast Production with STARK
STARK Mobile Block Making Machines are engineered to revolutionize high-volume concrete precast production. Unlike traditional stationary plants that require massive investments in pallets and heavy infrastructure, our mobile systems—including advanced vibro-forming technology and our high-yield egg laying block machines—lay the concrete products directly onto a curing slab. This mobility drastically reduces initial capital expenditures, minimizes material handling, and accelerates your return on investment.

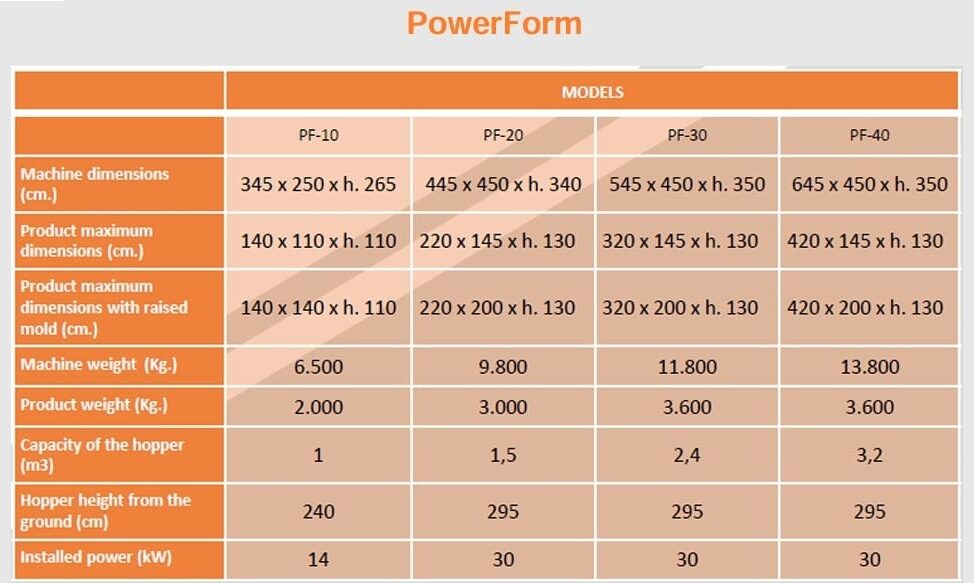

POWERFORM: Advanced Dry-Cast Vibro Forming Solution

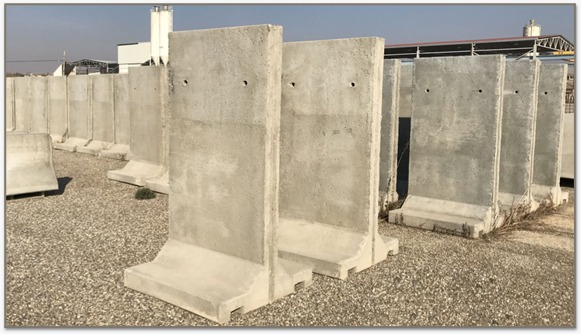

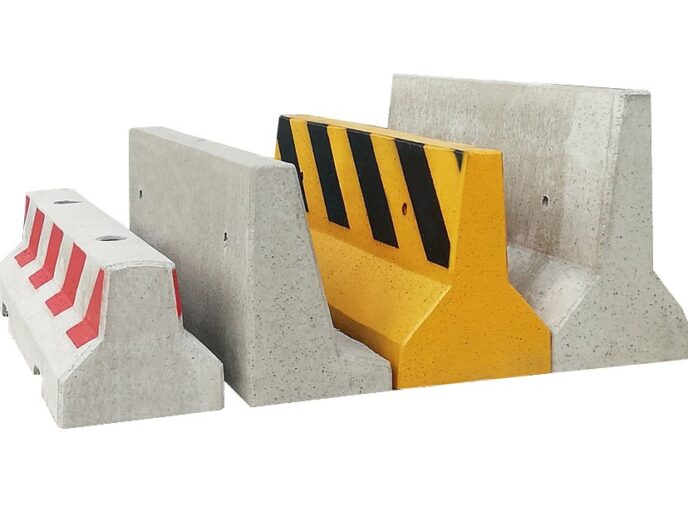

The POWERFORM is a cutting-edge mobile machine designed for the high-density production of complex precast concrete elements. Engineered to work with large-scale molds up to 13’ long and 4’ high, it features a heavy-duty rotary vibrating table. This technology allows producers to quickly expand their product portfolio—from large infrastructure elements to specialized barriers—and build inventory efficiently.
In simple terms, PowerForm works like an automated paver for precast molds, significantly reducing operational costs while maximizing output quality.
Key Benefits of POWERFORM:
- Massive Output: Up to a 10x increase in overall precast productivity compared to traditional casting.
- Labor Efficiency: Significant labor reduction through automated vibro-forming and mobility.
- Material Savings: Up to a 20% reduction in cement consumption due to optimized dry-cast compaction.
- Ultimate Versatility: Highly flexible and adaptable for multiple heavy precast applications.
EGGLAYER Series: High-Yield Egg Laying Block Machines
Our egg laying block machines are designed for maximum speed and simplicity. By laying hollow blocks, solid bricks, or pavers directly onto a concrete floor and moving forward automatically, this egglayer system completely eliminates the need for expensive curing pallets.
SMART 12: Heavy-Duty Mobile Block Machine
The SMART 12 is engineered for demanding, continuous precast operations requiring extreme versatility in block height.
- Mold Height Range: Min 2.3″ (60 mm) – Max 12″ (300 mm).
- Concrete Hopper: 317 gal (1,200 L) capacity for continuous feeding.
- Production Capacity: 1,400 pcs/hr – 12 standard blocks (8″x11″x8″) per cycle.
- Power Requirements: 42 kW – 3Ph 460V 60Hz.
- Moulding Surface: 4’ x 2.6’ (1280 x 810 mm).
- Cycle Time: 40 sec (stationary vibrating table mode) / 30 sec (mobile runway mode).
- Estimated Delivery Time (EDT): 12–16 weeks.
- Warranty: 12 months comprehensive coverage.
EASY 12: Compact & Efficient Block Machine
The EASY 12 delivers the same impressive 12-block capacity per cycle but with a more compact power profile, perfect for standardized hollow block production.
- Mold Height Limit: Max 7.87″ (200 mm).
- Concrete Hopper: 264 gal (1,000 L) capacity.
- Production Capacity: 1,400 pcs/hr – 12 standard blocks (8″x11″x8″) per cycle.
- Power Requirements: 18 kW – 3Ph 460V 60Hz.
- Moulding Surface: 4.1’ x 2.6’ (1250 x 810 mm).
- Cycle Time: 30–35 sec (mobile runway mode).
- Estimated Delivery Time (EDT): 8–12 weeks.
- Warranty: 12 months comprehensive coverage.
FAQ – Egg Laying Block Machines
01. What exactly is an “Egg Laying Block Machine”?
An egg laying block machine is a mobile concrete block manufacturing unit that “lays” the freshly molded blocks directly onto a flat concrete curing floor. Once a production cycle is complete, the machine automatically drives forward to cast the next batch, operating much like a laying hen.
02. Do I need pallets for the SMART 12 or EASY 12?
No. One of the greatest financial advantages of Stark Mobile Block Machines is that they operate entirely without pallets. You only need a smooth, level concrete runway or slab for the blocks to cure.
03. What type of concrete products can these machines produce?
By simply changing the steel molds, our machines can produce a wide variety of precast elements, including hollow blocks, solid bricks, paving stones, curbstones, and retaining wall blocks.
Stark guidance to scale your precast production
Choosing the right automated machinery is the key to scaling your block yard profitably. Whether you need the heavy-duty vibro-forming power of the POWERFORM or the pallet-free efficiency of a SMART 12 egg laying block machine, our engineering team is ready to analyze your production goals and recommend the exact setup you need. Contact us to calculate your ROI and production metrics today.
